TSP series slurry pump is a single stage, single suction, cantilever, vertical centrifugal structure. It is suitable for conveying abrasive, coarse particles, and high concentration slurry without any need for shaft seal water, and can work normally even under insufficient suction conditions. This pump is particularly suitable for various pit pumps in mines and coal preparation systems.
Features
1. Cantilever design without submerged bearings or shaft seals;
2. Wet components are available in A05 high chrome alloys and elastomers (rubber);
3. The screened inlets and large impeller passages reduce the risk of blockages
4. Available in a pre-fabricated conical sump with quick clean facilities;
5. Replaceable strainers allows for easy maintenance;
6. Simple installation and easy maintenance.
7. Anti-wear, anti-corrosion, which let the pumps service more longer;
8. No priming required.
TSP(R) Vertical Slurry Pump Performance Parameter
| Model | Matching power P (KW) |
Capacity Q
(m³/h) |
Head H
(m) |
Speed n
(r/min) |
Eff.η
(%) |
Impeller dia.
(mm) |
Max.particles (mm) |
Weight (kg) |
| 40PV-TSP | 1.1-15 | 7.2-29 | 4-28.5 | 1000-2200 | 40 | 188 | 12 | 300 |
| 65QV-TSP | 3-30 | 18-113 | 5-31.5 | 700-1500 | 60 | 280 | 15 | 500 |
| TP100RV | 5.5-75 | 40-289 | 5-36 | 500-1200 | 62 | 370 | 32 | 920 |
| 150SV-TSP | 11-110 | 108-576 | 8.5-40 | 500-1000 | 52 | 450 | 45 | 1737 |
| 200SV-TSP | 15-110 | 180-890 | 6.5-37 | 400-850 | 64 | 520 | 65 | 2800 |
| 250TV-TSP | 18.5-200 | 261-1089 | 7-33.5 | 400-750 | 60 | 575 | 65 | 3700 |
| 300TV-TSP | 22–200 | 288-1267 | 6-33 | 350-700 | 50 | 610 | 65 | 3940 |
| TSP/ TSPR CLEAR WATER PERFORMANCE | ||||||||
| MODEL | MAX. POWER (KW) |
MATERIAL | Q CAPACITY | HEAD H(m) |
SPEED n(r/min) |
MAX.Eff η% |
||
| LINER | IMPEL | (m 3 /h) | (I/S) | |||||
| 40PV-TSP | 15 | M | M or RU | 19.44~43.2 | 5.4~12 | 4.5~28.5 | 1000~2200 | 40 |
| 40PV-TSPR | 15 | RU | RU | 17.28~39.6 | 4.8~11 | 4~26 | 1000~2200 | 40 |
| 65QV-TSP | 30 | M | RU | 23.4~111 | 6.5~30.8 | 5~29.5 | 700~1500 | 50 |
| 65QV-TSP | 30 | M | M | 19.8~93.06 | 5.5~25.85 | 5~29.5 | 700~1500 | 40 |
| 65QV-TSP | 30 | M | M | 23.4~87.12 | 6.75~24.2 | 5.5~31.5 | 700~1500 | 58 |
| 65QV-TSPR | 30 | RU | RU | 22.5~105 | 6.25~29.15 | 5.5~31.5 | 700~1500 | 51 |
| 65QV-TSP | 30 | M | M | 18.9~89.1 | 5.25~24.75 | 5~28 | 700~1500 | 35 |
| 100RV-TSP | 75 | M | RU | 56.7~221.76 | 15.75~61.9 | 4.5~34.5 | 500~1200 | 56 |
| 100RV-TSP | 75 | RU | RU | 64.8~285 | 18~79.2 | 7.5~36 | 600~1200 | 62 |
| 100RV-TSPR | 75 | M | M | 54~289 | 15~80.3 | 5~35 | 500~1200 | 56 |
| 100RV-TSP | 75 | M | M | 54~237.6 | 15~66 | 6~30 | 600~1200 | 40 |
| 150SV-TSP | 110 | M | RU | 108~479.16 | 30~133.1 | 8.5~40 | 500~1000 | 52 |
| 200SV-TSP | 110 | M | M or RU | 189~891 | 52.5~247.5 | 6.5~37 | 400~850 | 64 |
| 250TV-TSP | 200 | M | M or RU | 261~1089 | 72.5~302.5 | 7.5~33.5 | 400~750 | 60 |
| 300TV-TSP | 200 | M | RU | 288~1267 | 80~352 | 6.5~33 | 350~700 | 50 |

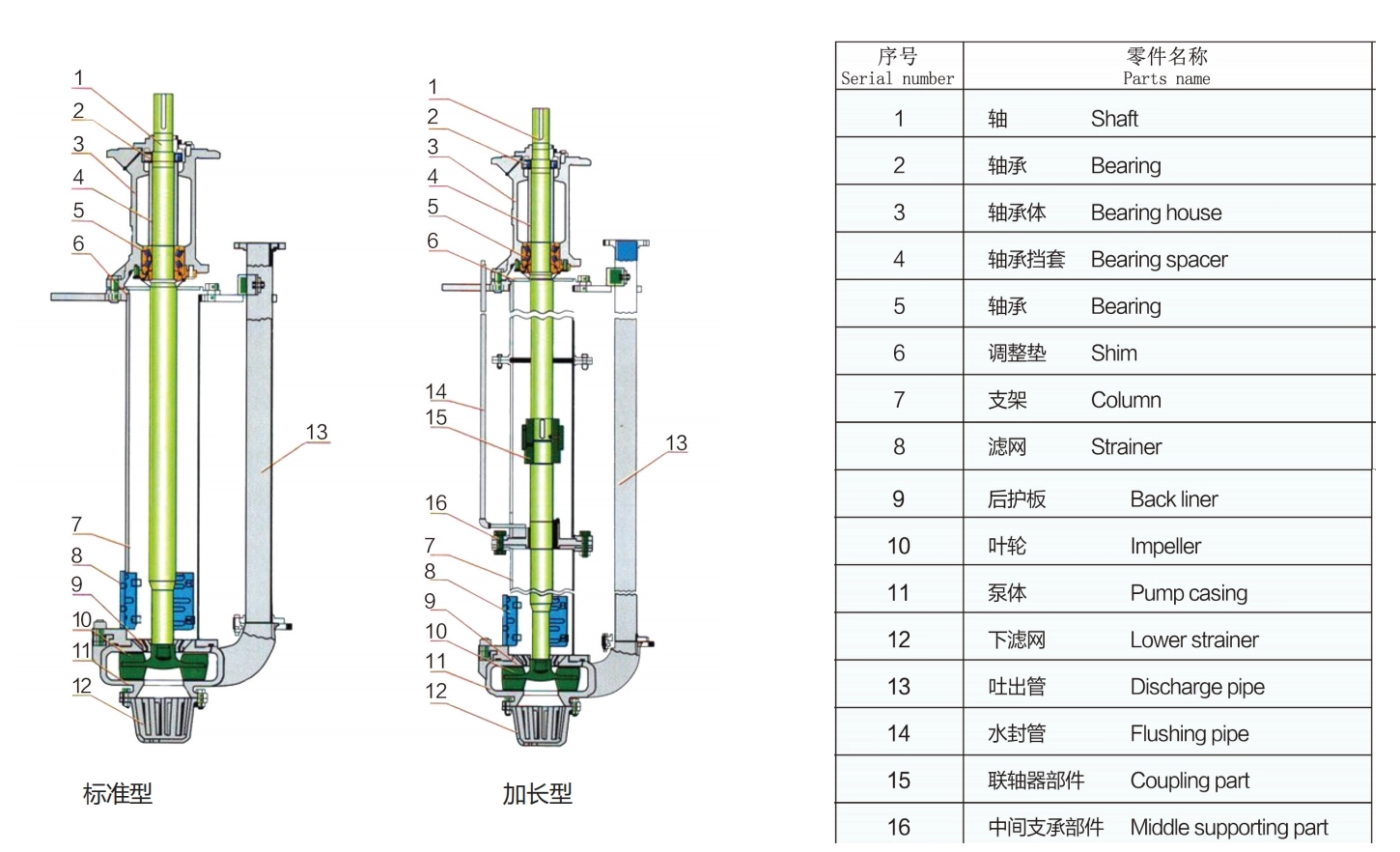

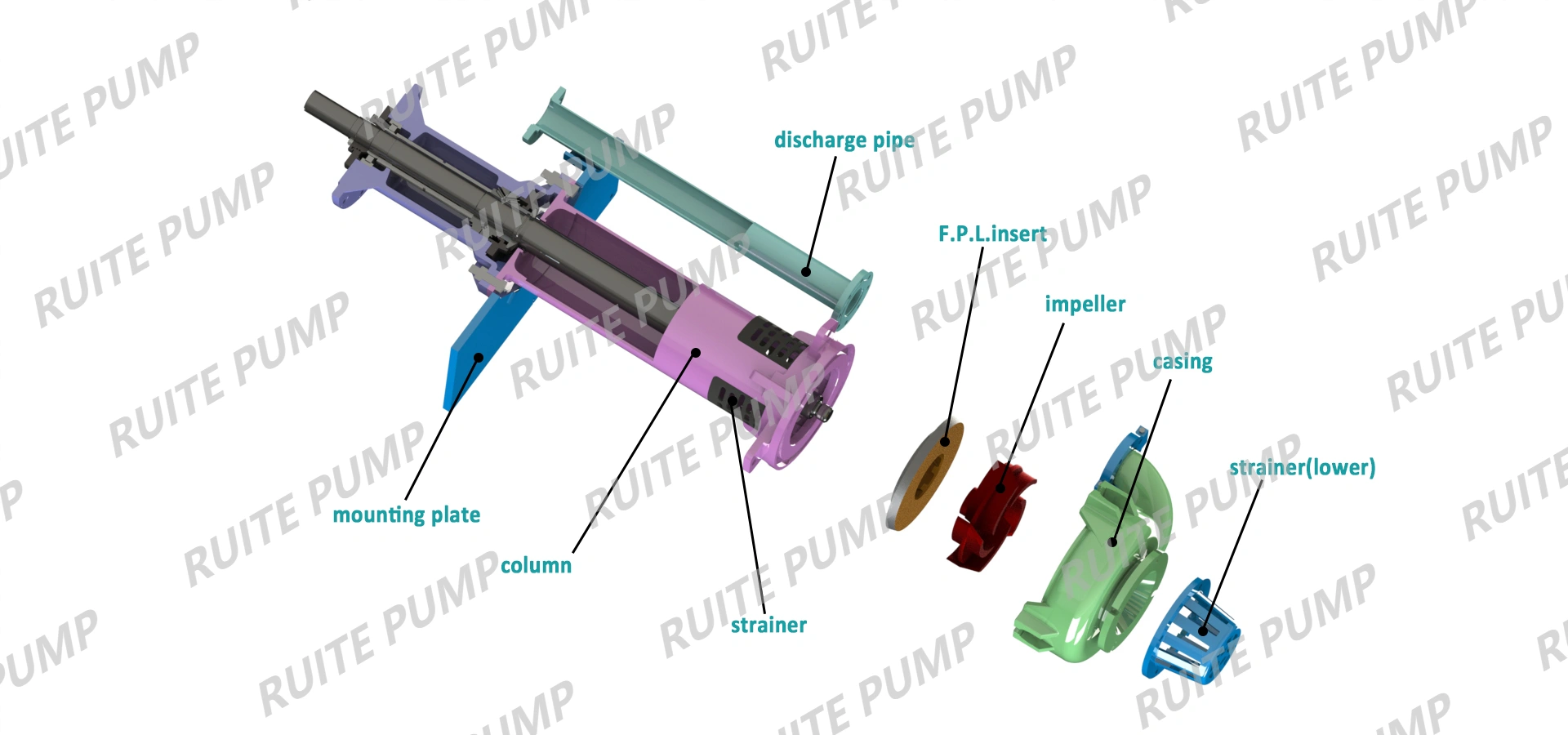

Structure Chart

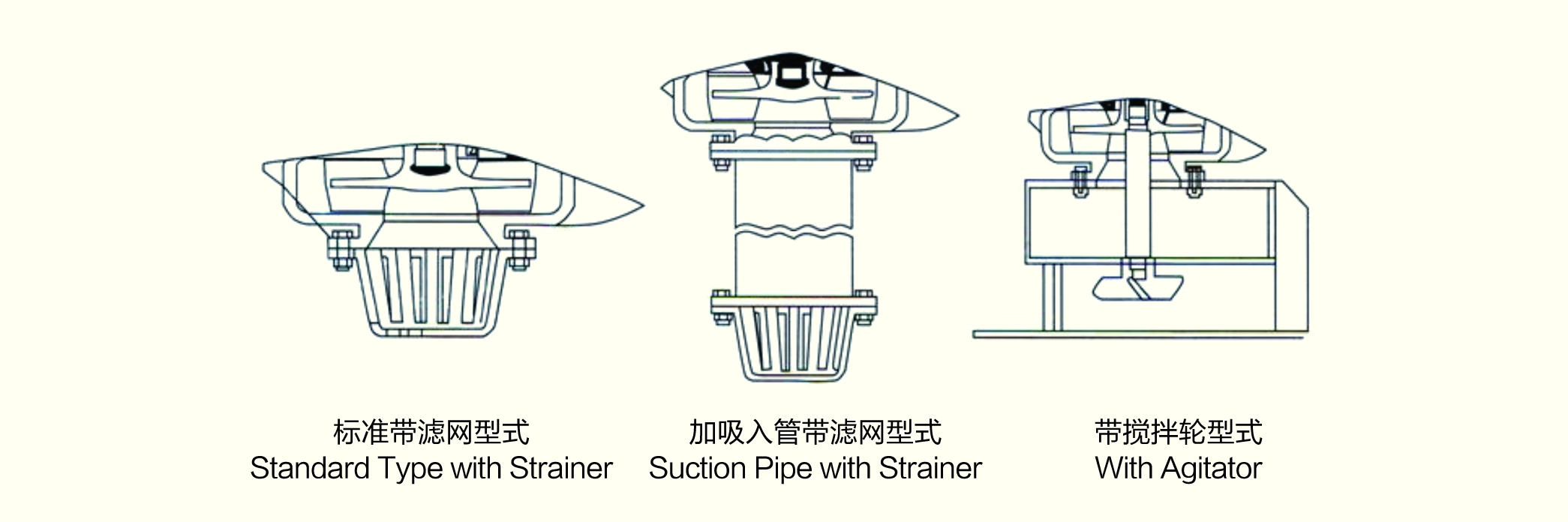

TSP(R) Vertical Slurry Pump 3 kinds of inlet construction
Applications
Mining and mineral processing process and spillage sump duties
Mill scale pumping in steel mills
Sugar cane processing
Non-contact induced-flow pumping of impact-sensitive media like carbon transfer or froth
(when provided with an optional recessed vortex impeller)
| ★ Minerals processing | ★ Coal preparation | ★ Chemical processing |
| ★ Effluent handling | ★ Sand and gravel | ★ Abrasive and/or corrosive slurries |
| ★ Large particle sizes | ★ High density slurries | ★ Heavy duties demanding cantilever shafts |
